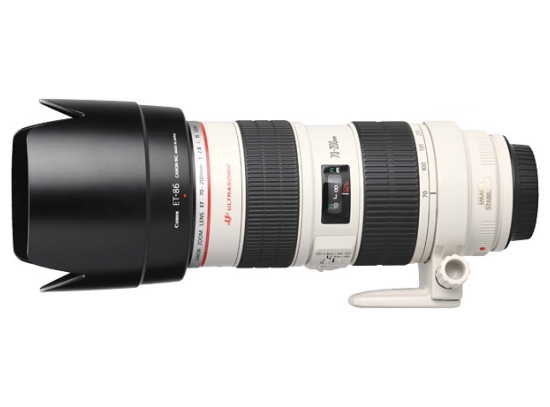

Equipment > Canon EF 70-200mm f/2.8L IS USM
Specifications
| Date introduced | August 2001 |
|---|---|
| Maximum format size | 35mm full frame |
| Focal length | 70-200mm |
| 35mm equivalent focal length (APS-C) | 112-320mm |
| Diagonal Angle of view (FF) | 34º - 12º |
| Diagonal Angle of view (APS-C) | 23º - 8º |
| Maximum aperture | F2.8 |
| Minimum aperture | F32 |
| Lens Construction | • 23 elements/18 groups • 4 UD elements |
| Number of diaphragm blades | 8 |
| Minimum focus | 1.4m |
| Maximum magnification | 0.17x at 200mm |
| AF motor type | • Ring-type Ultrasonic Motor • Full-time manual focus |
| Focus method | Internal |
| Zoom method | Internal |
| Image stabilization | • 3 stops • Dual mode - Normal and panning |
| Filter thread | • 77mm • Does not rotate on focus |
| Supplied accessories | • Front and rear caps • ET-86 Hood • LZ1324 Soft Case |
| Weight | 1570 g (55.4 oz) |
| Dimensions | 86.2 mm diameter x 197 mm length (3.4 x 7.8 in) |
| Lens Mount | Canon EF only |
| Other | Dust and moisture sealing Supplies distance information for E-TTL II flash metering |
